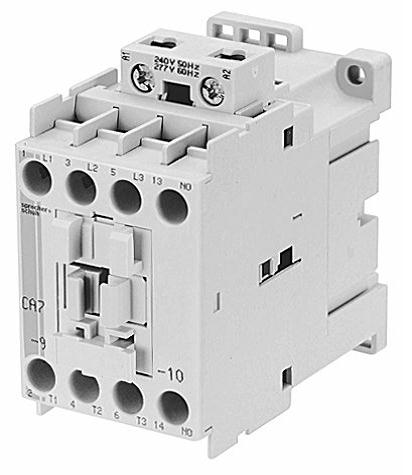

Sprecher & Schuh CA7 Series Three Pole Contactors with AC Coil

Catalog Files:

Sprecher Schuh CA7 Series Contactor Catalog.pdf

Auxiliary Contacts per Contactor:

AC Coil Code:

Voltage Range at 50 Hz:

Voltage Range at 60 Hz:

AC-3 Rating:

AC-1 Rating:

Part #	Auxiliary Contacts per Contactor	AC Coil Code	Voltage Range at 50 Hz	Voltage Range at 60 Hz	AC-3 Rating	AC-1 Rating
CA7-9-10-120	1-NO/0-NC	120	110V	120V	9	32
CA7-9-01-24Z	0-NO/1-NC	24Z	24V	24V	9	32
CA7-9-01-120	0-NO/1-NC	120	110V	120V	9	32
CA7-9-01-208	0-NO/1-NC	208	~	208V	9	32
CA7-9-01-220W	0-NO/1-NC	220W	200V-220V	208V-240V	9	32
CA7-9-01-240	0-NO/1-NC	240	220V	240V	9	32
CA7-9-01-277	0-NO/1-NC	277	240V	277V	9	32
CA7-9-01-380	0-NO/1-NC	380	380V-400V	440V	9	32
CA7-9-01-480	0-NO/1-NC	480	440V	480V	9	32
CA7-9-01-600	0-NO/1-NC	600	550V	600V	9	32
CA7-9-10-24Z	1-NO/0-NC	24Z	24V	24V	9	32
CA7-9-10-208	1-NO/0-NC	208	~	208V	9	32
CA7-9-10-220W	1-NO/0-NC	220W	200V-220V	208V-240V	9	32
CA7-9-10-240	1-NO/0-NC	240	220V	240V	9	32
CA7-9-10-277	1-NO/0-NC	277	240V	277V	9	32
CA7-9-10-380	1-NO/0-NC	380	380V-400V	440V	9	32
CA7-9-10-480	1-NO/0-NC	480	440V	480V	9	32
CA7-9-10-600	1-NO/0-NC	600	550V	600V	9	32
CA7-12-01-24Z	0-NO/1-NC	24Z	24V	24V	12	32
CA7-12-01-120	0-NO/1-NC	120	110V	120V	12	32

Displaying 1 to 20 (of 288 products)

Result Pages: 1 2 3 4 5 ... [Next >>]
