ABB Sectional Feed-Thru Terminal Blocks

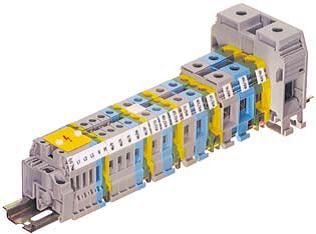

ABB's family of sectional feed-thru terminal blocks compression clamp allow ease of wiring. This series of sectional terminal blocks can be mounted symmetrically on DIN 3 rail or asymmetrically on DIN 1 rail. Sectional terminal blocks are versatile since they can be assembled to the length and design that fit your application. Available colors include grey, blue and orange.

Product Features

Wire size up to 500 MCM.
Mounting allowed on symmetrical rail (DIN 3) or asymmetrical rail (DIN 1).
Temperature range -40° to +110° C.
Without halogen or cadmium.
With or without ferrule.

Block:

Color:

Spacing:

Rated Wire Size:

Rated Current:

Reset

Part #	Block	Color	Spacing	Rated Wire Size	Rated Current
010500220	M 4/6	Orange	6mm	22 - 10 AWG	30 Amp
011521613	M 70/22	Grey	22mm	4 - 2/0 AWG	175 Amp
011548603	MA 2,5/5	Grey	5mm	22 - 12 AWG	30 Amp
011555610	M 95/26	Grey	26mm	4 - 4/0 AWG	230 Amp
012511601	M 4/6	Blue	6mm	22 - 10 AWG	30 Amp
012511813	M 6/8	Blue	8mm	22 - 8 AWG	50 Amp
012512011	M 10/10	Blue	10mm	20 - 6 AWG	65 Amp
012512401	M 35/16	Blue	16mm	10 - 1/0 AWG	150 Amp
012512916	M 16/12	Blue	12mm	18 - 6 AWG	85 Amp
012521615	M 70/22	Blue	22mm	4 - 2/0 AWG	175 Amp
010500422	M 6/8	Orange	8mm	22 - 8 AWG	50 Amp
012548605	MA 2,5/5	Blue	5mm	22 - 12 AWG	30 Amp
010507520	MA 2,5/5	Orange	5mm	22 - 12 AWG	30 Amp
012555612	M 95/26	Blue	26mm	4 - 4/0 AWG	230 Amp
011511607	M 4/6	Grey	6mm	22 - 10 AWG	30 Amp
039970412	D 240/36	Grey	36mm	2 AWG - 500 MCM	415 Amp
011511811	M 6/8	Grey	8mm	22 - 8 AWG	50 Amp
039971504	D 150/31	Grey	31mm	4 AWG - 350 MCM	445 Amp
011512017	M 10/10	Grey	10mm	20 - 6 AWG	65 Amp
039971706	D 150/31	Blue	31mm	4 AWG - 350 MCM	445 Amp

Displaying 1 to 20 (of 23 products)

Result Pages: 1 2 [Next >>]
