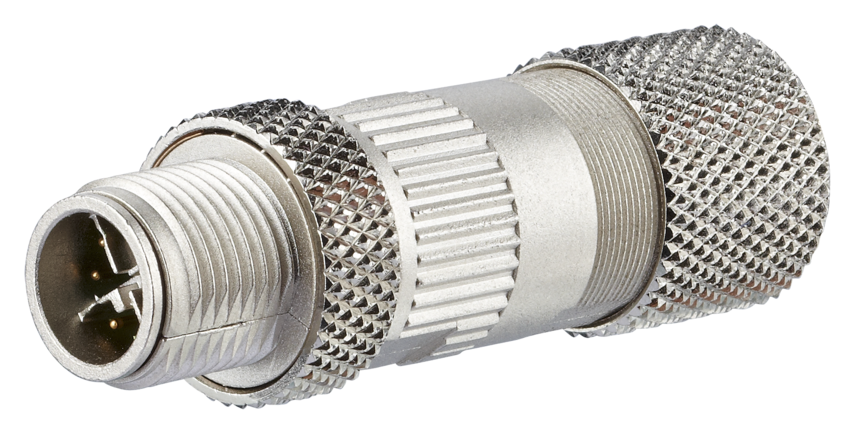

M12 Jack Field Plug X-Code, Straight
-
M12 Cat.6A X-coded plug based on IEC PAS 61076-2-109 and suitable for field assembly
-
Suitable for 10 GBit Ethernet (IEEE 802.3an), Remote Powering (PoE, PoE plus and UPoE) and HDBaseT
-
For a 8-wire M12 plug for AWG 22
-
Connection of AWG 26/1 - 22/1; AWG 26/7 - 22/7 possible
-
Solid copper wire diameter from 0.4 to 0.64 mm
-
Stranded copper wire diameter from 0.48 to 0.76 mm
-
Core diameter up to 1.6 mm
-
Cable jacket from 5.0 to 9.7 mm
-
Consists of only 2 parts
-
Easy assembly - connection without special tools
-
Zinc die-cast housing for industrial use
-
Suitable for applications in the railway industry
