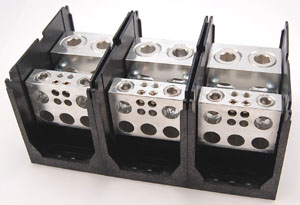

Marathon 135 Series Power Distribution Blocks, UL ListedMarathon 135 Series Power Distribution Blocks, Thermoplastic Insulator Base, Aluminum Wire Connectors , Line Side Available in 1 or 2 Openings, Load Side Available in 1, 2, 6, 8, 9, 10, 15, & 16 Openings, UL Listed |
Reset
Part #
|
Number of Positions & Length
|
Line Side Openings Per Position & Wire Range
|
Load Side Openings Per Position & Wire Range
|
Accessories
|
|
| 1351701 |
1 Position, 3.48"
|
1 Opening, 750 kcmil - 1/0 AWG
|
1 Opening, 750 kcmil - 1/0 AWG
|
None
|
 |
| 1351701-CH |
1 Position, 3.48"
|
1 Opening, 750 kcmil - 1/0 AWG
|
1 Opening, 750 kcmil - 1/0 AWG
|
Safety Hinged Cover
|
|
| 1351702 |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
2 Openings, 750 kcmil - 1/0 AWG
|
None
|
|
| 1351702-CH |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
2 Openings, 750 kcmil - 1/0 AWG
|
Safety Hinged Cover
|
|
| 1351703 |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
6 Openings, 250 kcmil - 6 AWG
|
None
|
|
| 1351703-CH |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
6 Openings, 250 kcmil - 6 AWG
|
Safety Hinged Cover
|
|
| 1351704 |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
10 Openings, 2/0 - 14 AWG
|
None
|
|
| 1351704-CH |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
10 Openings, 2/0 - 14 AWG
|
Safety Hinged Cover
|
|
| 1351705 |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
15 Openings Total, 12 Openings, 2-14 AWG & 3 Openings, 250 kcmil - 6 AWG
|
None
|
|
| 1351705-CH |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
15 Openings Total, 12 Openings, 2-14 AWG & 3 Openings, 250 kcmil - 6 AWG
|
Safety Hinged Cover
|
|
| 1351706 |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
9 Openings Total, 4 Openings, 2 - 14 AWG, & 5 Openings, 250 kcmil - 6 AWG
|
None
|
|
| 1351706-CH |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
9 Openings Total, 4 Openings, 2 - 14 AWG, & 5 Openings, 250 kcmil - 6 AWG
|
Safety Hinged Cover
|
|
| 1351707 |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
16 Openings Total, 12 Openings, 2 - 14 AWG, & 4 Openings, 3/0 - 6 AWG
|
None
|
|
| 1351707-CH |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
16 Openings Total, 12 Openings, 2 - 14 AWG, & 4 Openings, 3/0 - 6 AWG
|
Safety Hinged Cover
|
|
| 1351708 |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
8 Openings, 3/0 - 6 AWG
|
None
|
|
| 1351708-CH |
1 Position, 3.48"
|
2 Openings, 750 kcmil -1/0 AWG
|
8 Openings, 3/0 - 6 AWG
|
Safety Hinged Cover
|
|
| 1352701 |
2 Positions, 6.79"
|
1 Opening, 750 kcmil - 1/0 AWG
|
1 Opening, 750 kcmil - 1/0 AWG
|
None
|
|
| 1352701-CH |
2 Positions, 6.79"
|
1 Opening, 750 kcmil - 1/0 AWG
|
1 Opening, 750 kcmil - 1/0 AWG
|
Safety Hinged Cover
|
|
| 1352702 |
2 Positions, 6.79"
|
2 Openings, 750 kcmil -1/0 AWG
|
2 Openings, 750 kcmil - 1/0 AWG
|
None
|
|
| 1352702-CH |
2 Positions, 6.79"
|
2 Openings, 750 kcmil -1/0 AWG
|
2 Openings, 750 kcmil - 1/0 AWG
|
Safety Hinged Cover
|
|
| Displaying 1 to 20 (of 48 products) |
Result Pages: 1 |
|
